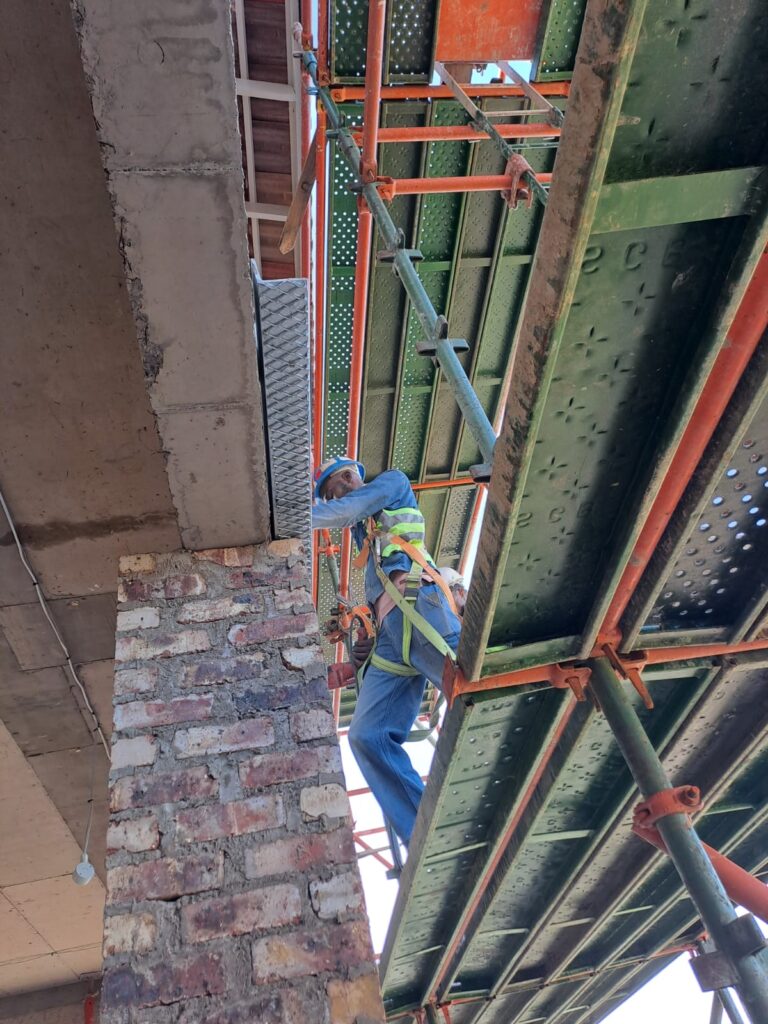

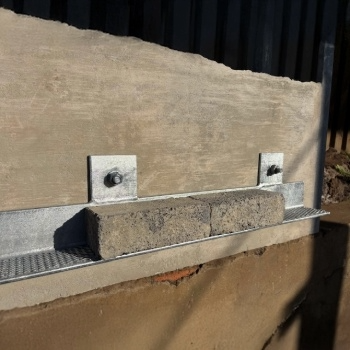

Brick support angles are used to support facade brickwork past the slab edge. 90mm x 90mm x 8mm Angles are used with a 90mm x 90mm x 8mm fixing lug welded on at 500mm centres with a 18mm diameter hole to receive either a M16 wedge anchor or chemical anchor depending on clients requirements.

Brick Lintel angles are made from 90mm x 90mm x 8mm angle and are 200mm long with two 18mm holes to receive M16 anchors or chemical anchors depending on clients requirements. These are used on door openings to support concrete lintel’s.

90mm x 90mm x 8mm Angle

Material finish is available with a single coat of red oxide primer or alternatively in a hot dip galvanised coating.
